Hardware

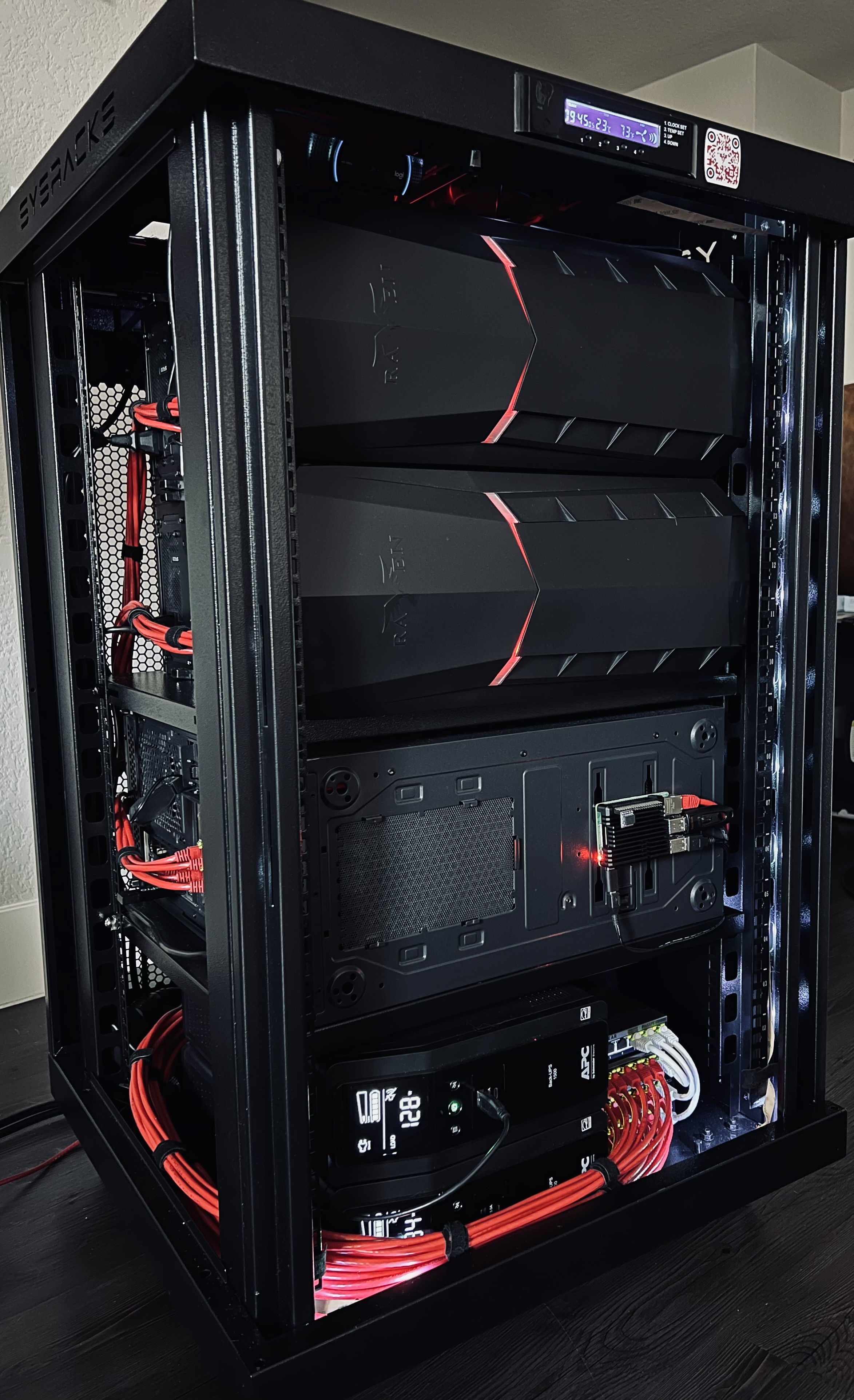

cabinet

---

Building this lab has been a labor of love now spanning over a decade.

To summarize, the top two PCs handle the bulk of the application workload with the lower PC being a dedicated NAS, providing storage to the other two. In addition, a single Raspberry Pi is used as a power controller for automating power cycles for all the compute devices pictured below. The networking is also arranged into a tier 2 architecture with UPS battery ports powering it all.

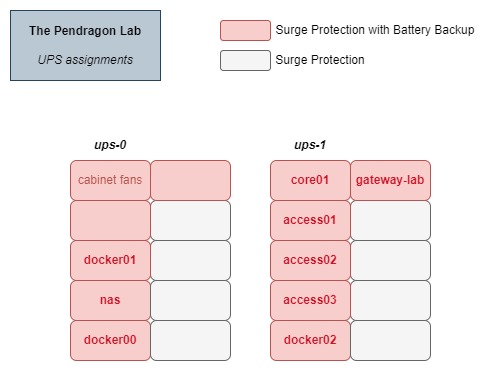

ups port assignments

---

bold - description and hardware specs provided below.

specifications

---

docker hosts

1. docker00

   • specs

     model	Raspberry Pi 4 Model B
     cpu	Quad core Cortex-A72
     arch	arm64
     ram	8 GB
     os	Ubuntu 22.04
     role	docker cluster node

   • storage

     device	size	type	disk
     /dev/sda	64 GB	usb	SanDisk USB 3.2Gen1 Flash Drive

2. docker01

   • specs

     model	custom
     cpu	Intel(R) Core(TM) i7-10700 CPU @ 2.90GHz
     arch	x86_64
     ram	64 GB ( 4 x 16GB ) Crucial Ballistix 3200MHz DDR4
     os	Ubuntu 22.04
     role	docker cluster node

   • storage

     device	size	type	disk
     /dev/sda	240 GB	ssd	PNY CS900 240GB

3. docker02

   • specs

     model	custom
     cpu	Intel(R) Core(TM) i7-10700 CPU @ 2.90GHz
     arch	x86_64
     ram	64 GB ( 4 x 16GB ) Corsair Vengeance LPX 3200MHz DDR4
     os	Ubuntu 22.04
     role	docker cluster node

   • storage

     device	size	type	disk
     /dev/sda	240 GB	ssd	PNY CS900 240GB

nas

1. nas

   • specs

     model	custom
     cpu	Intel® Core™ i5-12600KF Processor
     arch	x86_64
     ram	16 GB ( 2 X 8GB ) Corsair Vengeance LPX 3200MHz DDR4
     os	TrueNAS 13.0-U6.8
     role	nas

   • storage

     device	size	type	disk
     <raid>/root	24 TB	raidz1
     	8 TB	ata	WD Red Nas HDD
     	8 TB	ata	WD Red Nas HDD
     	8 TB	ata	WD Red Nas HDD
     	8 TB	ata	WD Red Nas HDD

core switches

1. core01

   • specs

     model	Netgear GS105Ev3 - 5-Port Gigabit Ethernet Smart Managed Plus Switch
     role	managed network switch
     layer	2

access switches

1. access01

   • specs

     model	Netgear GS108Ev3 - 8-Port Gigabit Ethernet Smart Managed Plus Switch
     role	managed network switch
     layer	2

2. access02

   • specs

     model	Netgear GS108Ev3 - 8-Port Gigabit Ethernet Smart Managed Plus Switch
     role	managed network switch
     layer	2

3. access03

   • specs

     model	Netgear GS108Ev3 - 8-Port Gigabit Ethernet Smart Managed Plus Switch
     role	managed network switch
     layer	2

gateway router

1. gateway-lab

   • specs

     model	ASUS RT-AC68U Wireless Router
     ram	256 MB
     role	wan router

ups

1. ups-0

   • specs

     model	APC UPS 1500VA BR1500MS2
     role	ups

2. ups-1

   • specs

     model	APC UPS 1500VA BR1500MS2
     role	ups
